2. Department of Neurology, Xishan People's Hospital, Wuxi 214000, China;
3. Laboratory of Molecular Neuron-oncology, Texas Children's Cancer Center, Baylor College of Medicine, Houston, TX, USA
Cellular sociology is a new field that addresses total behavior including recognition,communication,assembly and mutual interactions among whole cells and cell groups. Several studies have examined the biological changes among body cells from the per-spective of cellular sociology,including some studies of tumors; however,there have been no studies involving the dynamic and continuous observations of in vitro mutual interactions between glioma- initiating cells (GICs) and macrophages (Mø).
In this study,after co-culturing GICs with host Mø in vitro,social behaviors such as cell conjunction,cell fusion,and entosis among these two cells types were evaluated.
It is well known that in addition to GICs and their progeny cells,gliomas also contain microglia (tumor- associated macrophages). GICs have the ability to remodel the surrounding stromal environment by recruiting nonmalignant host cells including Mø that provide physiological resources to facilitate tumor progression[1]. Tumor-associated macrophages,and mutual inter-reaction with glioma cells,as well as the effects on promoting tumor cell proliferation,invasion,and metastasis have been reviewed previously[2]. However,no continuous and dynamic observations of the processes of direct mutual interactions between GICs and Mø have been reported. Our goal was to describe dynamically social activities of co-cultured GICs and Mø using a dual-color tracing technique and to evaluate the interactions between the two types of cells from a new perspective to understand GICs-Mø relationships during GIC initiation of tumor remodeling processes.
2 Methods 2.1 Preparation of athymic nude mice with whole body expression of green fluorescence protein (GFP)Transgenic C57BL/6J GFP-mice were crossed with athymic NC nude mice,and then the male progenies expressing GFP were selected and crossed with the female nude mice again. After the 8th generation of propagation,the organs and cells clearly expressed GFP in the GFP nude mice,which were named NCC57BL/ 6JGFP athymic nude mice. These mice were bred in an IVC isolation device (Fengshi Laboratory Animal Equipment Co.,Ltd.,Suzhou,China) according to specific pathogen free level management requirements.
2.2 GIC cell lineLentiviral vectors (Genechem Chemical Technology Co.,Ltd.,Shanghai,China) were used to transfect the red fluorescence protein (RFP) gene into human SU3 GICs as previously reported[3]. A total of 1 ´ 106 SU3 RFP cells were injected directly into the abdominal cavity of 6-week-old NC C57BL/6J GFP athymic nude mice,tumors formed over approxiamtely 4 weeks.
2.3 Preparation of GFP + MøPreheated DMEM culture medium was used for washing and injected into the abdominal cavity of 6-week-old NC C57BL/6J GFP nude mice after general anesthesia. This fluid was collected to harvest Mø. Immunocytochemistry was performed to detect the expression of the Mø specific marker protein CD68 using rat anti-mouse monoclonal antibody (1:200; Abcam,Cambridge,UK).
2.4 Cell co-culture in vitroIn vitro,SU3-RFP cells and normal Mø were co-cultured in DMEM in a 5% CO2 incubator. For co-cultured cells,the optimal ratio of SU3/Mø was 1:10,and the culture medium was changed every 3-4 days. Active mutual interactions between the two cell types were observed and recorded using a live-cell imaging system（Olympus,Tokyo,Japan）by live cell time-lapse shoot. Yellow fusion cells were observed under a fluorescence microscope (Carl Zeiss,Jena,Germany) 3 weeks later,and the number of yellow cells gradually increased over time. Yellow cells were monocloned by micro-pipetting techniques and further cultured in vitro.
2.5 Live cell time-lapse shootCell nuclei were dyed with Hoechst 33342 (live-cell fluorescence dye) (Sigma,St. Louis,MO,USA),and then the cells were digested by trypsin to prepare single-cell suspensions (1 × 105 cells /mL) in DMEM medium. Next,1 mL of cell suspension was trans-ferred to a culture dish prior to video microscopy. The microscope was surrounded by an enclosure to maintain a constant temperature (37 °C) and atmosphere (5% CO2 and 95% air). Cells were observed under an inverted microscope with a 20× objective lens. The filter sets used were as follows: Hoechst 33342,405 nm (excitation),GFP,488 nm (excitation),and RFP 561 nm (excitation). The time-lapse images were recorded every 10 min for 48-60 h,and then a video was made at a speed of 6/12 frames per second.
2.6 Flowchart of experimental methodsA flowchart of the experiment methods is shown in Figure 1.
|

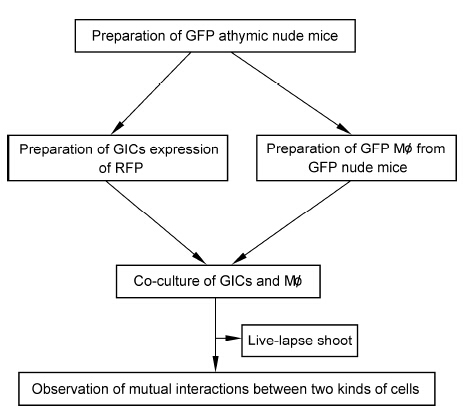

| Figure 1 Flowchart of the study. 3Results |
Four types of cellular interactions between GICs and Mø were observed as follows.
3.1 Cell conjunctionSome of the observed cells lived alone and were nearly stationary,while others showed various patterns of cell contacts. Some cells directly contacted each other via their cell bodies; other types of cell communication were achieved via direct anatomical microtubes among cells. The intercellular microtubes varied in length and diameter; there were both short-distance conjunctions and long-distance conjunctions,single conjunctions between two cells,and multiple conjunctions among a few cells. Further,some multi-cellular conjunctions formed network-like structures to communicate with a cluster of cells. No conjunctions were permanent,but were highly dynamic,and moved and changed through the observation period. The conjunctions were formed by extending filamentous pseudopodia between cells,starting at one cell and ending at another,resulting in the development of microtubes between cells. Some microtubes were formed through the separation of two cells that were linked together tightly (Figure 2).
|
| Figure 2 Various types of cell conjunctions. Diameters and lengths of conjunction microtubes varied, with slim (a arrow) and thick tubes (b, c arrow) observed conjunctions connected nearby cells (a-c) and distant cells (d arrow) according to the positions of relevant cells. These conjunctions can be also divided into single cell conjunctions (a-d) and multiple cell conjunctions (e, cell ① connected with ②, ③, ④, ⑤ cells, respectively, via conjunction tubes). None of the conjunctions was permanent. |
We observed three types of intercellular fusion. (1) GICs fused actively with Mø,which accounted for approximately 11% of the fusion events. (2) Mø actively fused with GICs,which was accounting for 17% of fusion events. (3) Fusion cell fused with other cells (GIC,Mø,or fusion cell),which was the most common fusion form,accounting for 72%.
Pattern 1: A very large red GIC with 4 nuclei extended its pseudopodia to attack several Mø. 970 min later,at least 3 Mø were captured. Next the cell became a yellow (RFP/GFP double positive) and its body was elongated with tapering of the middle portion. The cell gradually entered into prophase of cell division,and 1,020 min were required to produce two offspring cells after cell division (Figures 3a-3d).
|
| Figure 3 Cell fusion between GICs and Mø. (a–d) GIC actively fused with Mø. A GIC cell extended its pseudopodia to attack several Mø (a). Next, some Mø were fused successfully by the GICs (b), after which another GIC completely fused with Mø and became an RFP/GFP double positive fusion cell. The cell body of the fusion cell gradually became prolonged with a tapered middle section (c). Next, the cell entered prophase of mitosis. Approximately 17 h were required for the cell to divide into two offspring cells (d). (e–l) Mø actively fused GIC. Initially a GIC was enclosed by several Mø (e), and then the Mø (including No. ① cell) further approached and attacked the GIC continuously. It appeared that the cells could not find a breakthrough point, so the No. ① cell changed its attack point (f). After 1,870 min of “fighting”, the shape of Mø (No. ①) changed and had more filamentous pseudopodium and did not maintain close to inserted into the GIC directly (j). Next, the GIC changed from red to light yellow, and several Mø entered the GIC individually, causing the GIC to become dark yellow. Both the RFP and GFP markers were positive (l). (m–o) Re-fusion occurred between the GIC-Mø fusion cells. There were 4 yellow cells in the vision field. The two round cells fused together. Initially, one cell rapidly approached another cell (m). The cells came into contact and began to combine (n). This fusion process took approximately 60 min and the fusion cells were 2× larger than the size of the parent cell (o). |
Pattern 2: A GIC was enclosed by several Mø. The Mø (including No. ① Mø) first approached the GIC,and then hit the cell continuously. It initially appeared that breakthrough point would not occur,but the No. ① Mø used several points of attack. After 1,870 min,the shape of the Mø cells changed. Suddenly the No. ② Mø quickly approached and directly inserted into the GIC. Next,the color of the GIC became light yellow,and then several Mø around the GIC hit and entered easily into the GIC invidually. Soon afterwards,the GIC became bright yellow (Figures 3e-3l).
Pattern 3: A second fusion could occur between two fusion cells. At first,one fusion cell rapidly migrated close to another cell,untill the cells contracted each other. Nearly simultaneously,rupture of the cell membrane initiated the fusion process. This procedure was relati¬vely short,occuring over only 60 min (Figures 3m-3o).
3.3 Outcomes of fusion cellThe fate of the fused cells showed two opposite outcomes: reproduction and apoptosis. The former was dominant,occuring in 91.4% of the cases,and apoptosis occured in 8.6% of cases.
Cell reproduction and division was observed in a very large RFP/GFP double positive yellow fusion cell. In approximately 440 min the body and pseudopodia were reduced to a round cell. Next,the cell divided into two independent green cells after an additional 890 min,both cells gradually became yellow by 760 min later (Figure 4).
|
| Figure 4 Reproduction of fusion cells. A very large multi-nuclei re-fusion cell was observed (a). After 440 min its body turned into a sphaerocyst with retracted pseudopodia (b). Another 890 min later, this cell divided into two cells (c); however, after cell division, the fluorescence of these two cells was initially green and then became yellow after 760 min (d). |
Apoptosis of fusion cells were also observed. First,the fusion cells retraced and migrated irregularly,after which,the cell body instantly collapsed into many pieces,and then the debris was engulfed by nearby Mø. Another fusion cell underwent a different apoptosis process,in which the cell slowly became static garbage,and no obvious changes were observed over long-term observation (Figure 5).
|
| Figure 5 Instant apoptosis of fusion cells. One of the fusion cells, the FC-1 cell migrated irregularly before apoptosis. Initially, it moved close to the No. ① cell (a), but the cells were not in close contact. The migrating cell continued towards the left front and turned back (b). Next, the FC-1 cell approached to the No. ② cell (c), which extended its pseudopodia, stopped during migration (d) and moved close to the FC-1 cell (e). Nearly simultaneously, the FC-1 cell collapsed suddenly and its debris was engulfed by the No. ② cell (f). Another fusion cell, the FC-2 cell, migrated while showing continuous morphologic changes of its cell body. Initially, the cell contacted the surrounding No. ①–③ Mø cells (g). Only the No. ② cell followed the FC-2 cell closely (h), but they eventually separated (i). The No. ④ cell approached the FC-2 cell and extended its pseudopodia (j), after which the FC-2 broke into pieces (k), but phagocytosis did not occur. The FC-2 cell debris approached the No. ⑤ cell (l) gradually, and phagocytosis occurred in No. ⑤ (m–o), while No. ④ had no further changes (p). |
There were two types of entosis,a GIC in a Mø; and a Mø in a GIC (Figure 6).
|
| Figure 6 Phenomenon of entosis (scale bar 20 μm). The transient state in which a live GIC was contained within a Mø (Arrows marked engulfed cells). |
The Outcomes of entosis were as follows.
Release: A deep yellow round cell released a light yellow short spindle cell. The newly released cell rapidly exited the parent cell. During the release process,the shape of parent cell changed from round to spindle,when the release process was complete,the shape of the parent cell was restored to its original state. A second release process was observed. The parent cell migrated irregularly with multiple small prominences stretching in different directions. Next,the cell contracted rapidly,quickly releasing a long,spindle,pale yellow offspring cell which moved actively around the parent cell. After 370 min,its appearance changed from spindle-like to spherical,which was similar to its parent cell and was yellow in color (Figure 7).
|
| Figure 7 Fate of entotic cells. Entosis occurred in two yellow spherocytes, No. 1 (a) and No. 3 (e). The deep yellow round cell No. 1 released a slight yellow short spindle cell (b, c), after which the offspring cells rapidly exited. During release, the shape of the parent cell changed from round to spindle. After release,the shape of the parent cell was restored to its original state (b: No. 1*; d: No. 1*). The No. 3 (e) parent cell migrated and stretched its small prominences in different directions (f), and then it retracted and released a long spindle pale yellow offspring (g: No. 3*). The offspring cell moved actively around its parent cell. After 370 min the cell became a spherocyte, similar to its parent cell (h: No. 3*). |
Digestion: The phenomenon of “being digested” by the intracellular enzymes after entosis can occur,and was the second common phenomenon.
4 ConclusionsIn recent years,the new concept of tumor microecology and tumor cellular sociology was introduced to explore the mechanisms of tumor occurrence and development. This new research field has attracted great attentions in the oncology field[2, 4]. Tumor stem cells have the ability to remodel the surrounding stromal environ¬ment by recruiting nonmalignant host cells including Mø that provide physiological resources to facilitate tumor progression. On the other hand,immune cells might modulate the biology of tumor cells[1]. In order to comprehensively image the interactions between tumor stem cells and cells in their microenvironment,cells are labeled,with different fluorescence marker for accurate tracing. Using this technique,our research team has performed a series studies on glioma tissue remodeling initiated by GICs[5],including trans- differentiation of GICs into tumor vasculature[6],and malignant transformation of host immune cells and glial cells induced by GICs[1, 7]. Few studies have examined the mutual interactions between GICs and macrophages in dynamic enviroments. In our study,by observing co-cultured GICs and macrophages using a live cell imaging system,the main cellular events were evaluated from the perspective of cellular sociology.
Cell-cell communication is critical for the develop-ment,maintenance,and function of multi-cellular organisms. Six different types of cell conjunctions between GICs and macrophages were observed,all of which were highly dynamic,unstable,and changed continuously. Similar cell-cell connections via membrane tubes have been reported previously,including intercellular nanotubes,membrane nanotube,tunneling nanotubes,or cytonemes[8]. These interactions play important roles in the transport of organelles,cell membrane components,cytoplasmic molecules,and spread of infectious particles. Additionally,microvesicle and stem signals may also be transmitted through intercellular microtubes[8-10]. Many membrane tubesFigure 6Phenomenon of entosis (scale bar 20 μm). The transient state in which a live GIC was contained within a Mø (Arrows marked engulfed cells). formed among tumor cells in astrocytomas,creating functional multi-cellular network structures,that can be applied as routes for brain invasion,proliferation,inter-connection,and radioresistance[9]. However,the exact functions of microtube connections between GICs and macrophages require further analysis.
Cell fusion is a major and important cellular event in cellular sociology. Previous studies reported that the incidence of cell fusion in a tumor model was 1%[11]. Our data showed that following in vitro co-culture of GICs and macrophages,the spontaneous fusion incidence between the two types of cell was 2.7%. Different fusion rates may be observed in different co-culture systems. The pathways of cell fusion vary between different cell types,suggesting that different systems have evolved separately in various cell type[12-16]. Recent studies have revealed that fusion can occur following phagocytosis of cancer cells or apoptotic bodies by tumor-associated macrophages or other phagocytes[17]. In fact,macrophages may fuse with cancer cells through their inherent fusion capability; similarly,cancer cells may be prone to fusion because of aberrant expression of fusion-associated receptors or ligands[18]. Our data suggested that GICs can actively fuse to host macrophages and that macrophage cell occasionally actively fuse to GICs. Regardless of the interaction type,cell fusions occured at the level of whole cells.
Tumor fusion plays an important role in the progression and metastasis of cancer[17-22],which represents a non-genetic mutational mechanism that may explain the aberrant gene expression patterns associated with malignant cells. Hybrids produced by fusion in vitro or in vivo fusion were aneuploid and showed higher invasiveness potential. Additionally,GICs fusion may be an important cause of glioma remodeling and progression,particulaly in the vicious transformation of tumor mesenchaymal cells and heterogenicity of tumor cells.
Fusion cells with the biological effects should have potential to divide,differentiate,and trans-differentiate,although their number in the cell sociology was very low; however,similarly to tumor stem cells,cell fusion was very effective in achieving these goals and may play very important roles in tumor remodeling driven by GICs[23]. Our results showed that fusion cells could produce equal or unequal offspring cells in symmetrical and asymmertrical forms,confirming that the differentiation ability described above occurred in gliomagenesis.
Programmed cell death,particularly apoptosis,is important in tissue shaping,eliminating unnecessary cells,and tumor suppression[24]. Our data revealved two types of apoptosis processes of fusion cells. The rate of apoptosis was very rapid,suggesting that rapid apoptosis of fusion cells is relevant to the regulation and suppression of tumors.
Another mode of non-apoptotic cell elimination known as entosis resembles cell cannibalism and the cell-in-cell phenotype was observed in some tumors[25]. During entosis,a live cell accommodates a host cell that comes from the extra-cellular matrix; the viability of the internalized cell is sustained over the short term,with two results: digestion by the intracellular enzymes or extrication out of the host cell[24]. Our results showed the latter destination,in which the cell was released. It was previously unclear whether entosis was a means for cell elimination or cannibalism of the invading cell,which can provide certain advantages to the host cell through nutrient recycling during metabolic stress. In tumor occurrence and evolution,entosis inhibited tumor growth[25].
In summary,valuable information was obtained related to the direct and dynamic processes of interactions between GICs and macrophages in vitro. these data may help to reveal the phenomenon of malignant transformation of host macrophages,which we reported previously[1],and was an important part of glioma cellular sociology.
